Name: 3" Stainless Pot Still Column With Built in Condenser, Whiskey, Moonshine Head
SKU: 285266

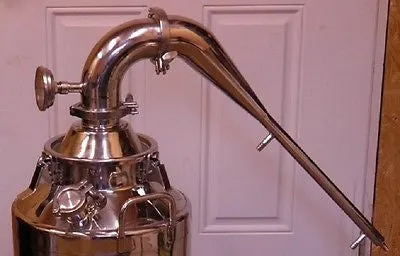

This 3" Stainless Steel Pot Still Head comes with a Liebig condenser and a commercial grade thermometer with a 3" face.

Solid TIG welded construction which is much stronger than soldering or brazing. Includes structured copper packing for the column. This column gives you the best of both worlds. You get the strength and durability of stainless and the flavor improving qualities of copper.

This is for the head/column only, the boiler is not included.

Comes With:

Commercial grade thermometer with a 3" face
and for connecting the column to a still
3" Tri Clamp stainless ferrule connection welded to the base of the column for connecting to a still
with for connecting the column to the still.
with for connecting the column to the condenser
Built in stainless Liebig condenser.
1/2" hose barb connections on the condenser for cooling water.
Super heavy duty construction using 308 stainless welding rod and heavy gauge 304 stainless steel.
1 Roll of structured

This item comes with a 1 year warranty which covers manufacturing defects and leaks.

This Pot Still Column is built to last a lifetime.

Pass it down to future generations.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to .

Pipe Outer Diameter A	Flange Outer Diameter B	Pipe Inner Diameter C
1"	1.98"	.87"
1.5"	1.98"	1.37"
2"	2.52"	1.87"
2.5"	3.05"	2.37"
3"	3.58"	2.87"
4"	4.68"	3.83"
6"	6.57"	5.78"
8"	8.57"	7.78"
10"	10.57"	9.69"
12"	12.57"	11.81"

Disclaimer:

These products may not be legal to operate in some areas. Affordable Distillery Equipment, LLC strongly discourages any unlawful use of these products and is not responsible for any damage or injury caused by the misuse or unlawful use of these products. Any person or entity that uses information or equipment provided by Affordable Distillery Equipment, LLC does so entirely at their own risk and accepts all liability concerning the use of the aforementioned equipment and information.
